- Balancing Current: Daly leads in passive balancing efficiency with 80-120mA balancing currents, while Grenergy and JBD focus on low standby draw.
- Software Ecosystem: Grenergy relies heavily on the BatBMS app, whereas JBD and Daly feature extensive cross-platform PC tools and open-source integrations.
- Security Frameworks: Daly uses encrypted pairing, while JBD and Grenergy (via recent firmware v3.3) implement custom challenge-response handshakes.
Table of Contents
- 1. Hardware Architecture & Interfaces
- 2. Passive Cell Balancing Efficiency
- 3. Software Configurations & App Support
- 4. Security Frameworks & Cryptographic Audits
- 5. Frequently Asked Questions
- 6. Sources & References

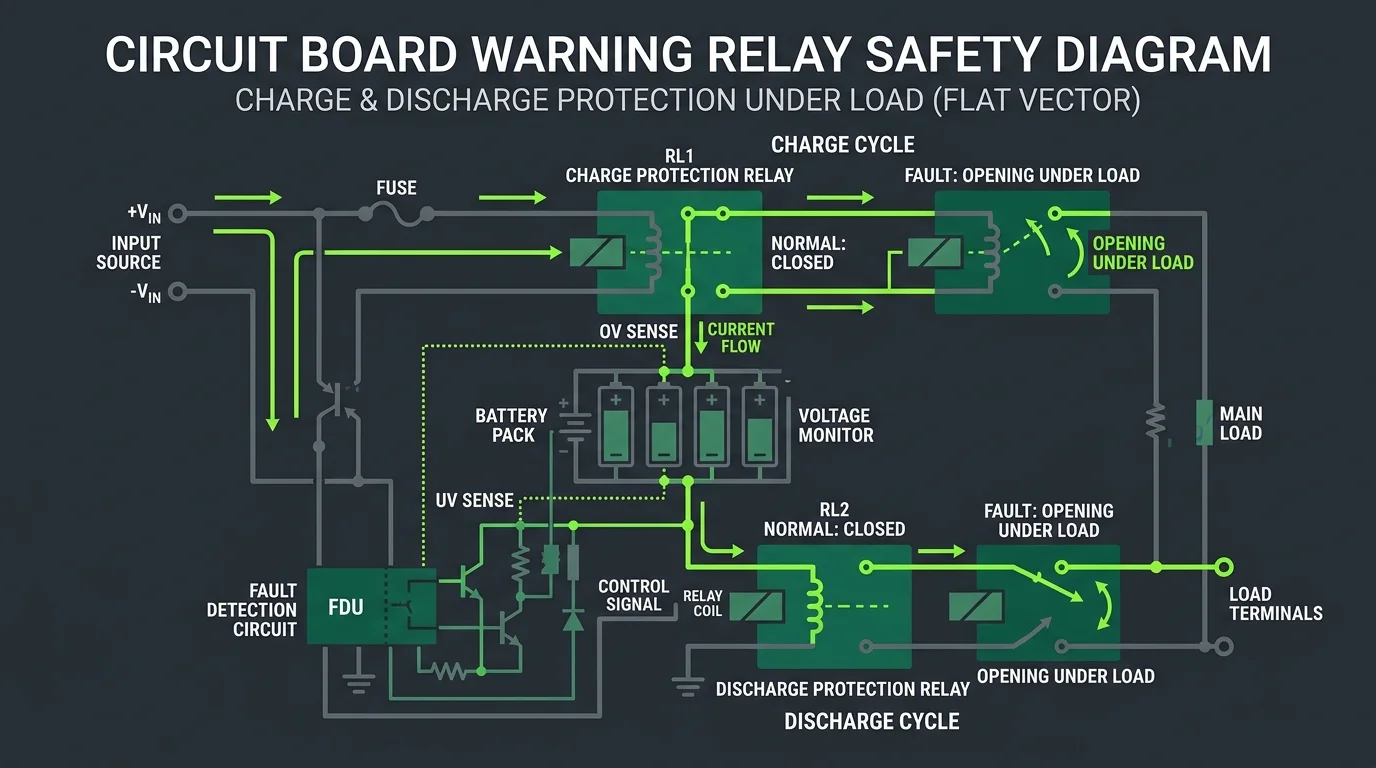

1. Hardware Architecture & Interfaces
A smart Battery Management System (BMS) controls the charge and discharge paths using high-power MOSFET switches. Daly BMS boards are known for their fully sealed waterproof aluminum shells, making them durable for outdoor LEV operations. JBD and Grenergy offer modular layouts with separate Bluetooth transceivers, enabling easier repairs but leaving them more vulnerable to dust and moisture ingress.

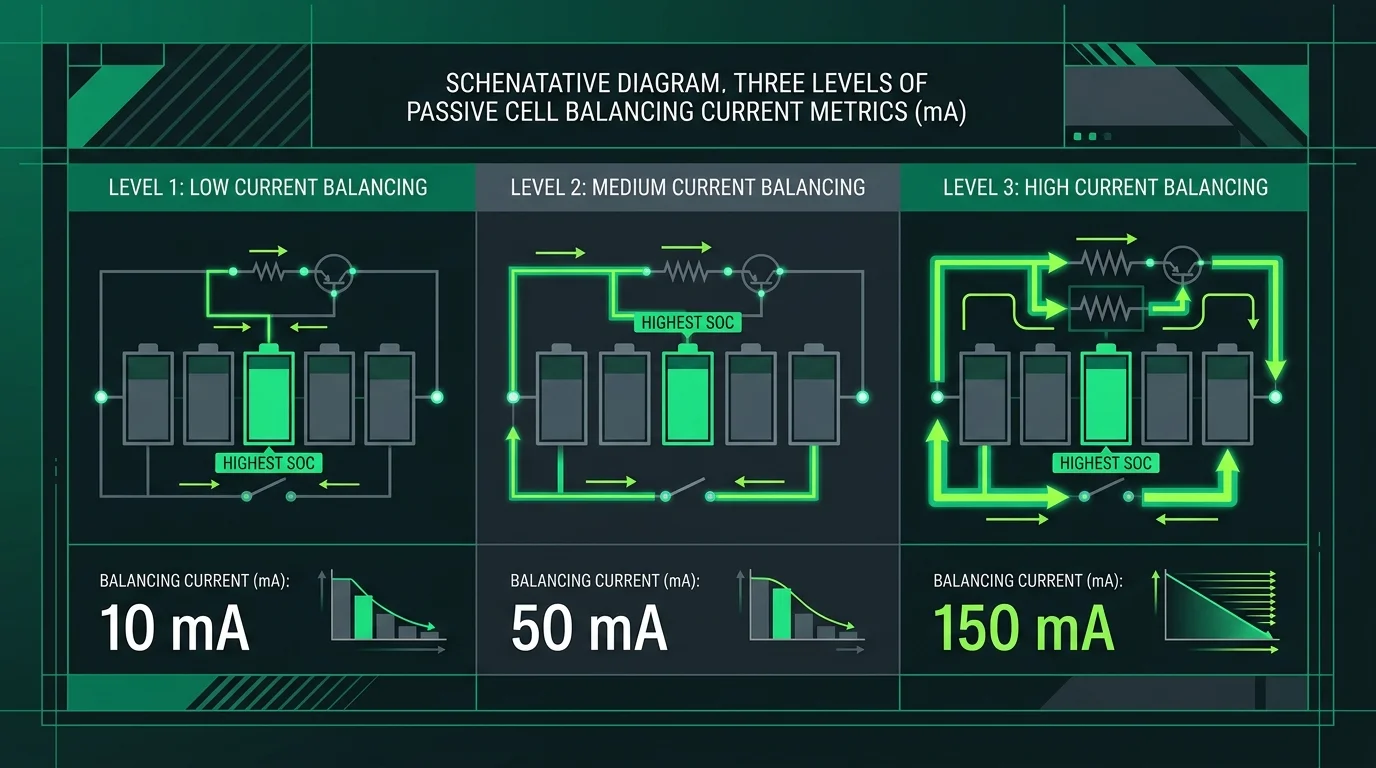

2. Passive Cell Balancing Efficiency
Cell balancing is critical for maintaining capacity. While Daly's passive balancing circuit dissipates up to 120mA, Grenergy modules restrict passive balancing to 40-60mA to minimize internal heat generation inside enclosed boxes. JBD offers configurable balancing currents, but requires customized PC software tools to tweak these parameters.

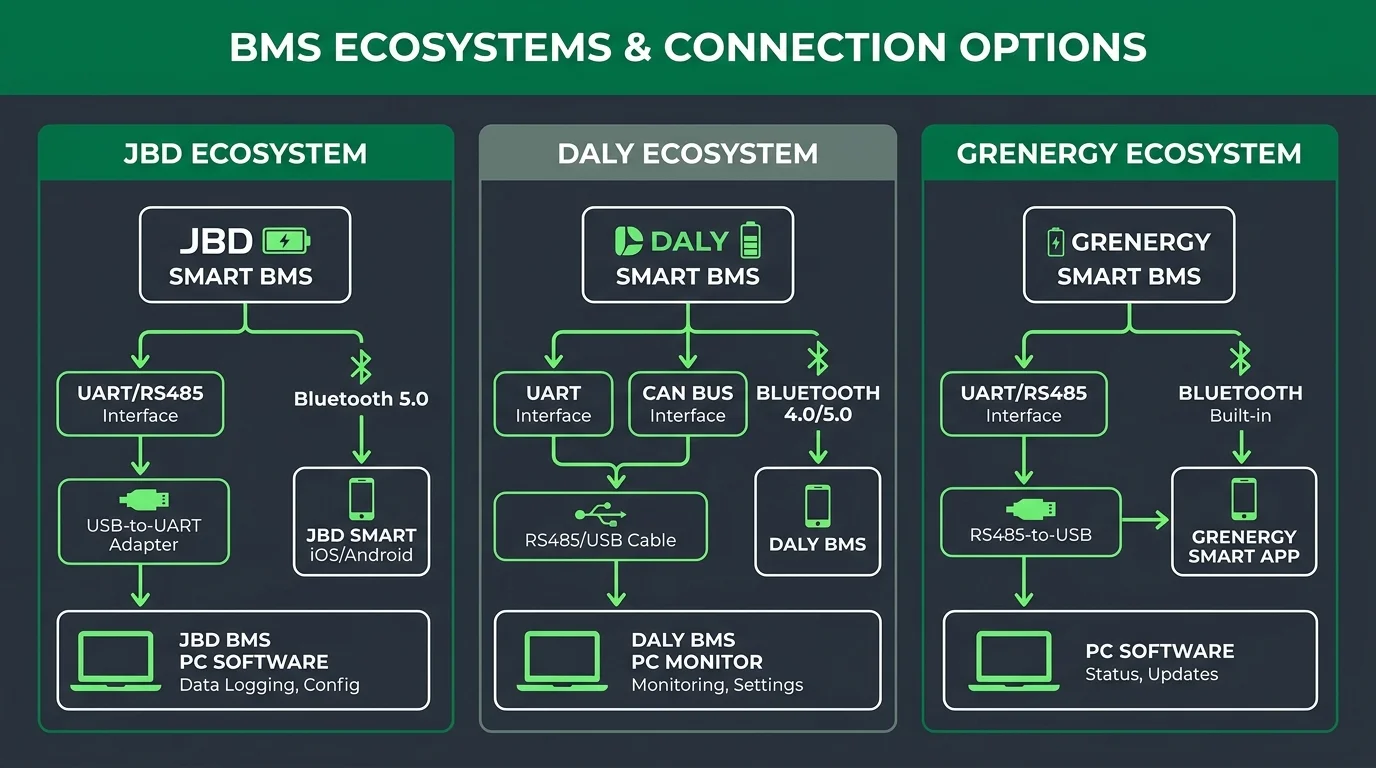

3. Software Configurations & App Support
The user experience is shaped by the supporting software. Grenergy uses the BatBMS app, which stands out for its high update rates (500ms) but had security issues in earlier builds. Daly's Smart BMS app offers clean telemetry, while JBD uses the popular Xiaoxiang BMS app, which supports customizable configurations.
4. Security Frameworks & Cryptographic Audits
In the wake of MeitY's July 2026 security audit, security has become a key buying criterion. Prior to 2026, most consumer-grade BLE BMS units suffered from similar lacking password verifications. Daly was the first to implement encrypted Bluetooth pairing handshakes, while Grenergy (via recent firmware v3.3) and JBD have since patched their architectures with custom challenge-response handshakes.
5. Frequently Asked Questions
No. While all these apps use Bluetooth Serial protocols, their data payload structures are proprietary and incompatible with competitor hardware.
Daly BMS boards are highly regarded for heavy-duty environments due to their fully sealed, shock-resistant design. JBD and Grenergy are preferred when configurations require regular adjustments.
6. Sources & References
- Daly Smart BMS v3.0 technical manuals and specifications
- Jiabaida JBD Tooling parameters documentation
- "A Comparative Study of Passive Balancing Efficiencies in Smart Lithium Packs", Energy Storage Review, 2026.
